Specifications:
Flatpack assembly
Fully modular design
Built-in vertical GPU mount
Full-sized specs, pint-sized body
Highly customizable
Accessory ecosystem
Fully Modular
Features modular panels that simplify and streamline the usual case
prep process. Every panel is separately removable for easy maintenance.
Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience.
Welcome to the future of PC DIY.

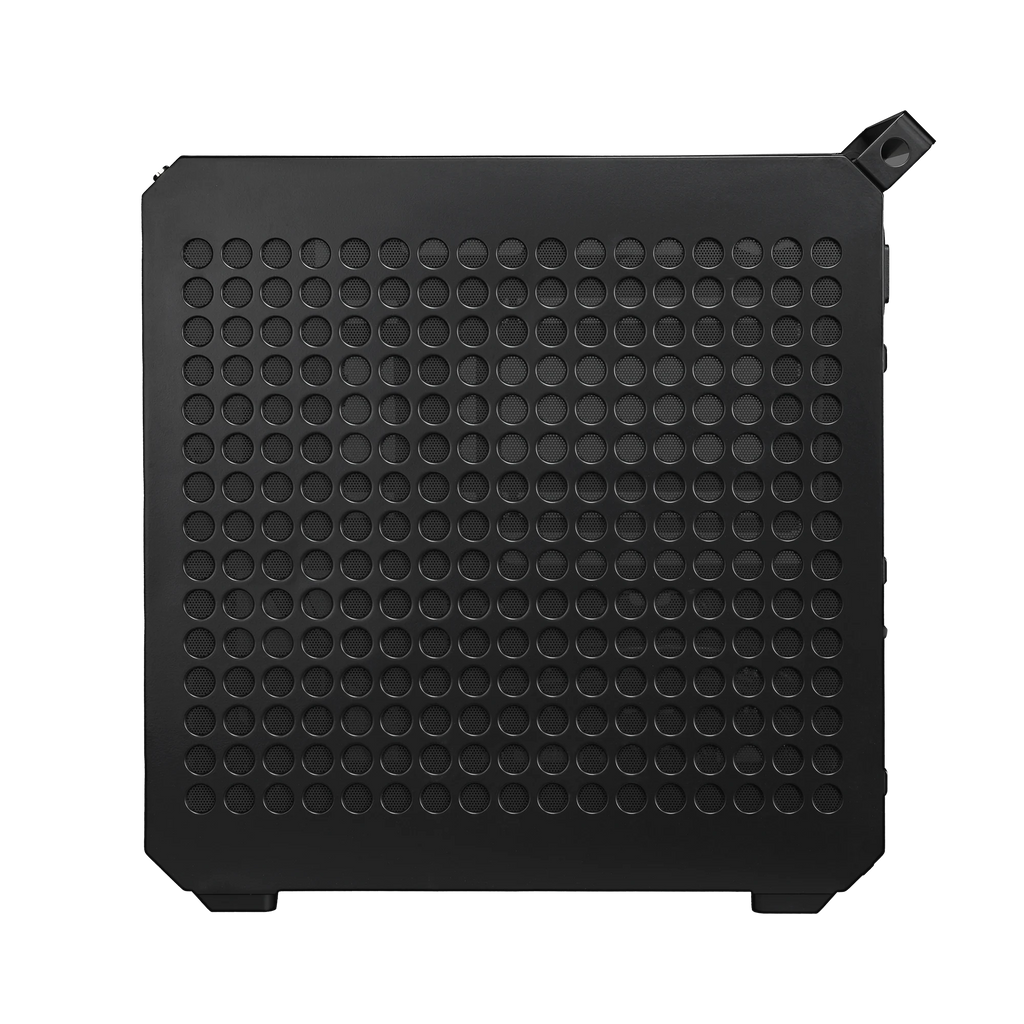

Swappable Side Panels
The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.
Full-sized specs
& pint-sized body
The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
Hardware Compatibility
The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
Storage Compatibility
The Qube 500 provides up to 4x 3.5” HDD mounting positions and up to 3x 2.5” SSD mounting positions.
Mult-color Macaron edition
Color your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks (only available on Macaron edition models). Mix and match the modular panels to create a case that is truly your own.
Side radiator bracket
Extra Airflow
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
GPU Bracket
Built-in vertical
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessories
Accessory ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and accessory hook are included (only available on Macaron edition models), and we have prepared some 3D-printable files for you to create your own accessories.
Specifications
-
Model NumberQUBE 500 Flatpack: Q500-KGNN-S00, QUBE 500 Flatpack White: Q500-WGNN-S00
-
Exterior ColorBlack, White
-
Materials - ExteriorSteel, Plastic, TG
-
Materials - Left Side PanelGrey TG + Steel
-
Dimensions (L x W x H)406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions)
-
Volume33.44L (excl. Protrusions)
-
Motherboard SupportITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
-
Expansion Slots7
-
3.5" Drive Bays4
-
2.5" Drive Bays3
-
I/O Panel - USB Ports2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
-
I/O Panel - Audio In / Out1x 3.5mm Combo
-
Pre-installed Fans - RearQUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM
-
Fan Support - Front1x 120/140mm (x2 if PSU is mounted in bottom)
-
Fan Support - Top2x 120/140mm
-
Fan Support - Rear1x 120mm
-
Fan Support - Bottom2x 120/140mm
-
Fan Support - Left side2x 120/140mm
-
Radiator Support - Front120/140 mm (240/280mm w/ PSU in bottom)
-
Radiator Support - Top120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)
-
Radiator Support - Rear120mm
-
Radiator Support - Bottom120 / 140 / 240 / 280mm
-
Radiator Support - Left side120 / 140 / 240 / 280mm
-
Clearance - CPU Cooler164mm-172mm (Remove the water cooling bracket)
-
Clearance - PSU173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
-
Clearance - GFX365mm
-
Cable Routing - Behind Motherboard Tray29-32mm
-
HandleQUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
-
Gem MiniQUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
-
Dust FiltersFront, Top, Bottom, Right side
-
Power Supply SupportSFX / SFX-L / ATX
-
Warranty2 years
-
SizeMid Tower
-
SeriesQUBE Series
-
Back Connector Motherboard SupportNo
-
Note-
