ASUS Prime Z690-P D4 LGA 1700 (Intel® 12th&13th Gen) ATX motherboard (PCIe 5.0,DDR4,14+1 Power Stages, 3x M.2,2.5Gb LAN,V-M.2 e-key,front panel USB 3.2 Gen 1 USB Type-C®,Thunderbolt™ 4 support, Arua Sync)

79.000 KWD

Product Type: Motherboards
Barcode: 94529764

DESCRIPTION

Model
Brand	ASUS
Model	PRIME Z690-P D4
Part Number	90MB18P0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Supports x4 mode.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 * Support x4 mode.
PCI Express x1	1 x PCIe 3.0 x1
Other Slots	V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset:** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 233.68 mm
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Windows Compatibility
Windows 11	Ready

Features
Features	Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit

Packaging
Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting

Intel® LGA 1700 socket: Ready for 12^th gen Intel® processors
Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12^th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Performance

Intel® Socket LGA1700 for 12^th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Expansion slots
- 1 x PCIe 5.0 x16 SafeSlot
- 1 x PCIe 4.0 x16
- 2 x PCIe 3.0 x16
- 1 x PCIe 3.0 x1
14+1 DrMOS

4 x DIMM
- DDR4 5333 (OC)
- Dual Channel
- OptiMem II
3 x M.2 slots
- 1 x M.2 22110 (PCIe 4.0 x4 mode)
- 1 x M.2 2280 (PCIe 4.0 x4 mode)
- 1 x M.2 22110 (PCIe 4.0 x4 & SATA modes)

Cooling

CPU fan headers
VRM heatsinks

One M.2 heatsink for two M.2 slots
CHA fan header

AIO pump header
Chipset heatsink
CHA fan headers

Personalization

1 x AURA RGB header
1 x AURA Addressable Gen 2 header

2 x AURA Addressable Gen 2 headers

Connectivity

2 x USB 2.0 ports(Type-A)
DisplayPort
HDMI® port
1 x USB 3.2 Gen 2 port (Type-A)
1 x USB 3.2 Gen 2x2 Type-C®

2 x USB 3.2 Gen 1 ports (2 x Type-A)
Realtek 2.5 Gb Ethernet
1 x Optical S/PDIF out port
5 x Audio Jacks
1 x USB 3.2 Gen 1 header

1 x USB 3.2 Gen 1 Type-C® Connector
Thunderbolt™ header
4 x SATA 6 Gb/s
2 x USB 2.0 headers
1 x USB 3.2 Gen 1 header

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

Digi+ VRM Control

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions, or share them with friends.

EZ Mode

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ XMP

Improve DRAM performance with one click.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch.

COOLING

Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

Removable captive screws reduce risk of drops or loss during heatsink removal.

VRM Heatsinks and High-quality Thermal Pads

Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Smart Protection

A dedicated integrated circuit protects each fan header from overheating and overcurrent.

PERFORMANCE

Prime Z690 series is built to handle the additional cores and increased bandwidth of 12^th Generation Intel® processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Power Design

Stable power is essential to extract every last bit of performance out of 12^th Generation Intel processors. Prime Z690-P D4 is geared to cater to the demands of these high-core-count CPUs.

14+1 DrMOS

A VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand.

Memory

OptiMem II

Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of ASUS OptiMem II:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software.
Top layer – ground ring to prevent lateral interference.

Storage

Three M.2 slots (up to 64 Gbps)

Prime Z690-P D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

Thunderbolt™ 4 Support

Prime Z690-P D4 features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

CUSTOMIZATION

Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layers for Left and Right Tracks

Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Personalization

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Static

Breathing

Strobing

Rainbow

Color Cycle

Starry Night

Music Effect

Smart

Dark

Adaptive color

Addressable Gen 2 RGB Header

Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Armoury Crate

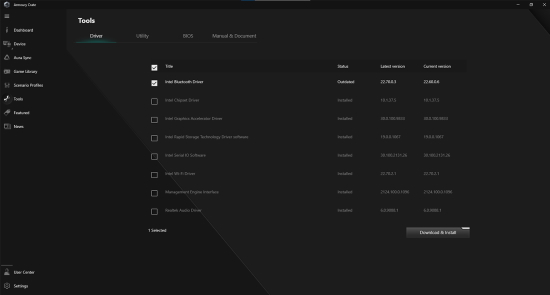

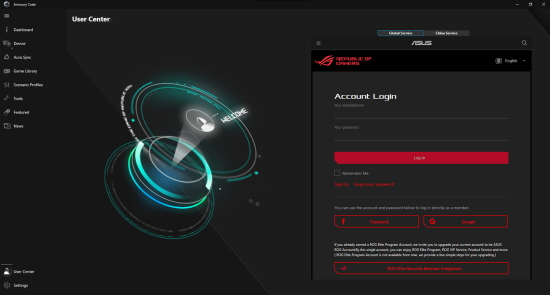

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

Driver & Manual Download

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

No DRAM Detected

Fast blinking
4 Hz (0.25 s)

No VGA Detected

Slow blinking
1/2 Hz (2 s)

No Boot Device Detected

Very slow blinking
1/8 Hz (8 s)

Installation Completed

Solid light

SafeSlot

PCIe® 5.0 is 2x faster than PCIe® 4.0, so ASUS adapted the SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe® slot to keep a card firmly installed.

LANGuard

Pumped-up throughput 2.5X higher surge tolerance

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

1000+
Compatible devices and components

The Prime Z690 series provides superior compatibility with thousands of components and memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests

Ensures components withstand extreme conditions.

Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests

Every port and connector is put through repeated installation cycles.

Aging tests

Up to 48-hour aging test ensures reliability.

Power-consumption tests

Checked for world-class energy efficiency.

Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests

Ensures ability to survive temperature changes during transportation.

Non-operation shock tests

Built to withstand jolts that may occur during shipping.

Burn-in tests

Every component is checked to ensure flawless operation.

Installation tests

Connector placement is double-checked to ensure hassle-free installation.

Drop tests

Drop tests from various heights ensure durability.

Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model. Please refer to the specification page
The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.

About ASUS

ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.

About ROG

Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.

© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.

REVIEWS

SHOPPING CART

title

ASUS Prime Z690-P D4 LGA 1700 (Intel® 12th&13th Gen) ATX motherboard (PCIe 5.0,DDR4,14+1 Power Stages, 3x M.2,2.5Gb LAN,V-M.2 e-key,front panel USB 3.2 Gen 1 USB Type-C®,Thunderbolt™ 4 support, Arua Sync)

Out Of Stock!

Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting

Performance

Cooling

Personalization

Connectivity

FLEXIBILITY

Intelligent Control

Digi+ VRM Control

Precise Digital Power Control

UEFI BIOS

Advanced Mode

Advanced Tuning for Serious Tweakers

Search Function

ASUS User Profile

EZ Mode

Quick and Simple Setup

Intuitive Graphical Fan Control

EZ XMP

Aura On/Off Mode (Stealth)

COOLING

Heatsinks

M.2 Heatsink

VRM Heatsinks and High-quality Thermal Pads

Cooler by Design

Smart Protection

PERFORMANCE

Power Design

14+1 DrMOS

Memory

OptiMem II

Benefits of ASUS OptiMem II:

Storage

Three M.2 slots (up to 64 Gbps)

Connectivity

Thunderbolt™ 4 Support

CUSTOMIZATION

Audio

Combined onboard features deliver elevated audio

Audio Shielding

Separate Layers for Left and Right Tracks

Premium Audio Capacitors

Personalization

Aura Sync

Outshine the Competition

Static

Breathing

Strobing

Rainbow

Color Cycle

Starry Night

Music Effect

Smart

Dark

Adaptive color

Addressable Gen 2 RGB Header

Armoury Crate

Driver & Manual Download

DIY Friendly

Q-LED Core

No DRAM Detected

No VGA Detected

No Boot Device Detected

Installation Completed

SafeSlot

LANGuard

Overvoltage Protection

DRAM Overcurrent Protection

Stainless-Steel Back I/O

1000+Compatible devices and components

8000+Validation hours

Temperature and humidity tests

Thermal measurement tests

Insertion tests

Aging tests

Power-consumption tests

Temperature and DC margin tests

1000+
Compatible devices and components

8000+
Validation hours
