Specifications:
| Brand | MSI |
|---|---|
| Series | SHADOW |
| Model | RTX 5060 8G SHADOW 2X OC |
| Part Number | RTX 5060 8G SHADOW 2X OC |
| Interface | PCI Express 5.0 x 16 (use x8) |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 |
| Boost Clock | 2527 MHz |
| CUDA Cores | 3840 Cores |
| Effective Memory Clock | 28 Gbps |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

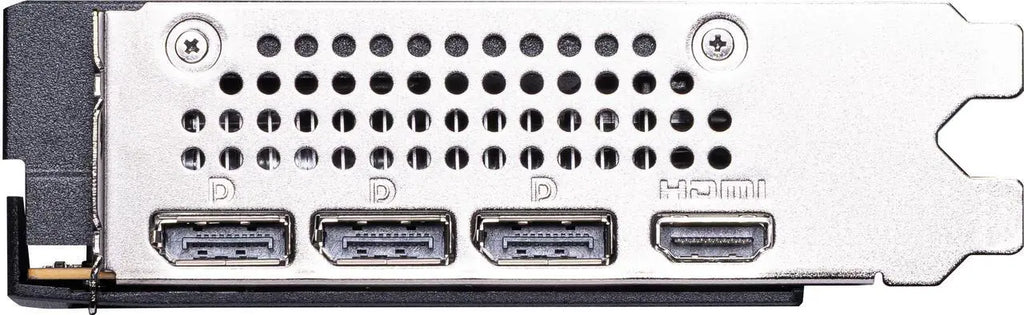

| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Max Resolution | 7680 x 4320 |
|---|---|
| SLI Support | No |
| Cooler | Double Fans |
| Thermal Design Power | 145W |
| Recommended PSU Wattage | 550W |

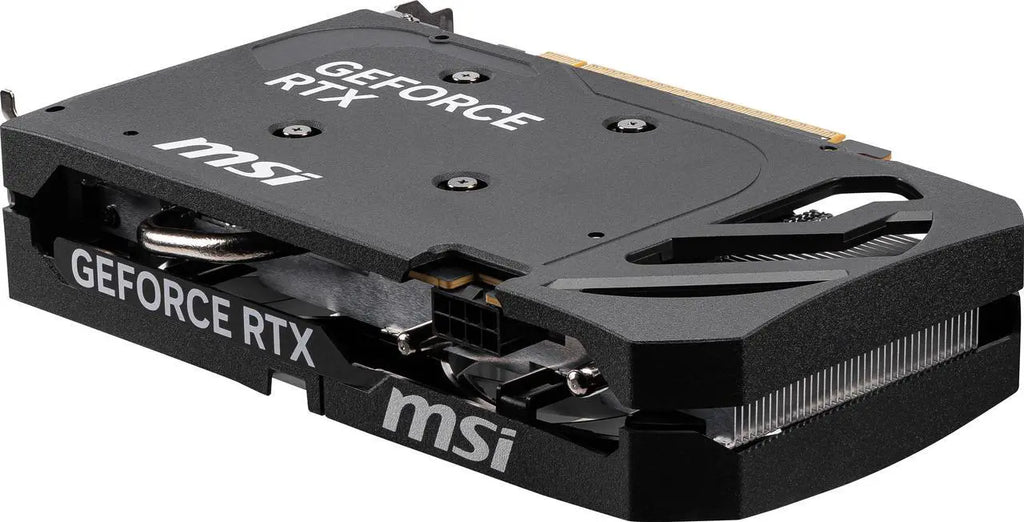

| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Max GPU Length | 197 mm |
|---|---|
| Card Dimensions (L x H) | 197 x 120 x 40mm |
| Date First Available | May 19, 2025 |
|---|

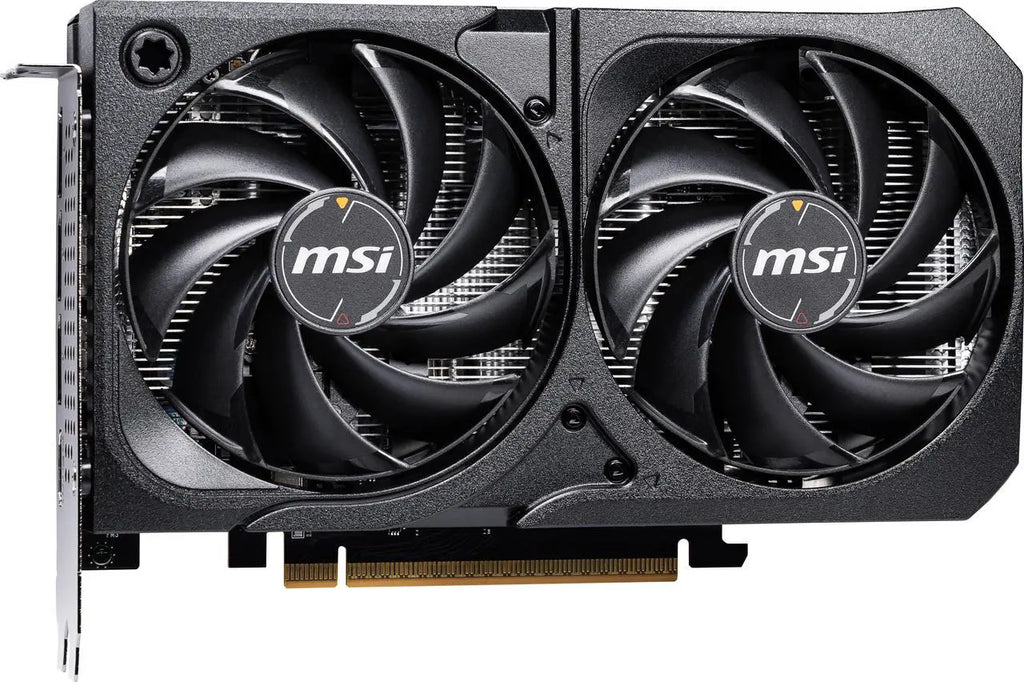

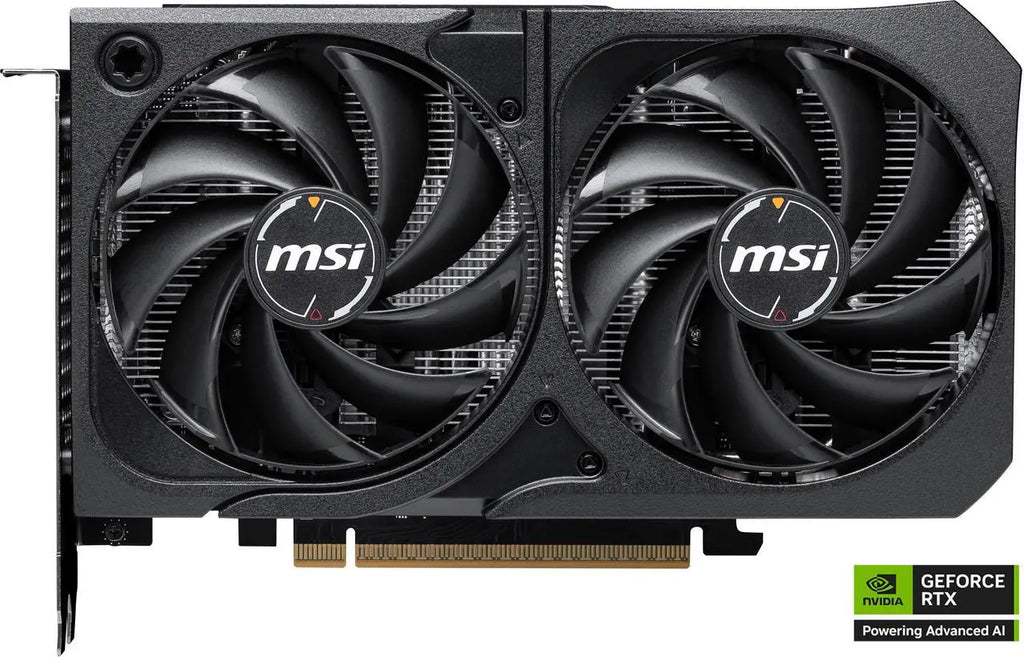

MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
Max AI performance with FP4 and DLSS 4
Optimized for neural shaders
Built for Mega Geometry
NVIDIA DLSS 4 with Multi Frame Generation
NVIDIA Reflex 2 with Frame Warp
Full ray tracing with neural rendering
NVIDIA ACE
NVIDIA Studio creator tools and technology
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
NVIDIA G-SYNC
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. ?The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input.
Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

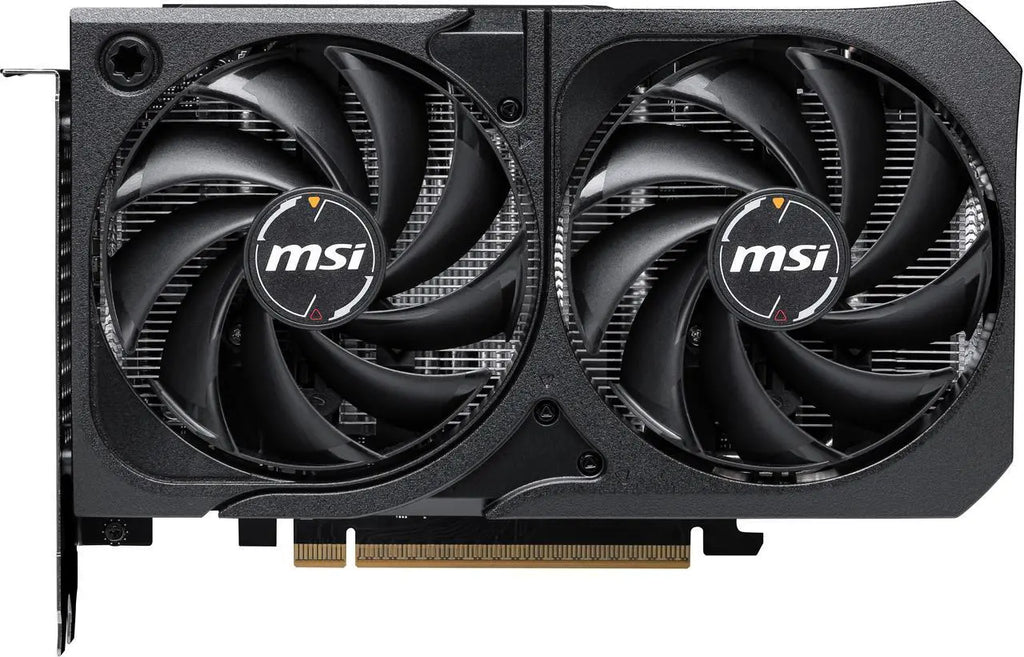

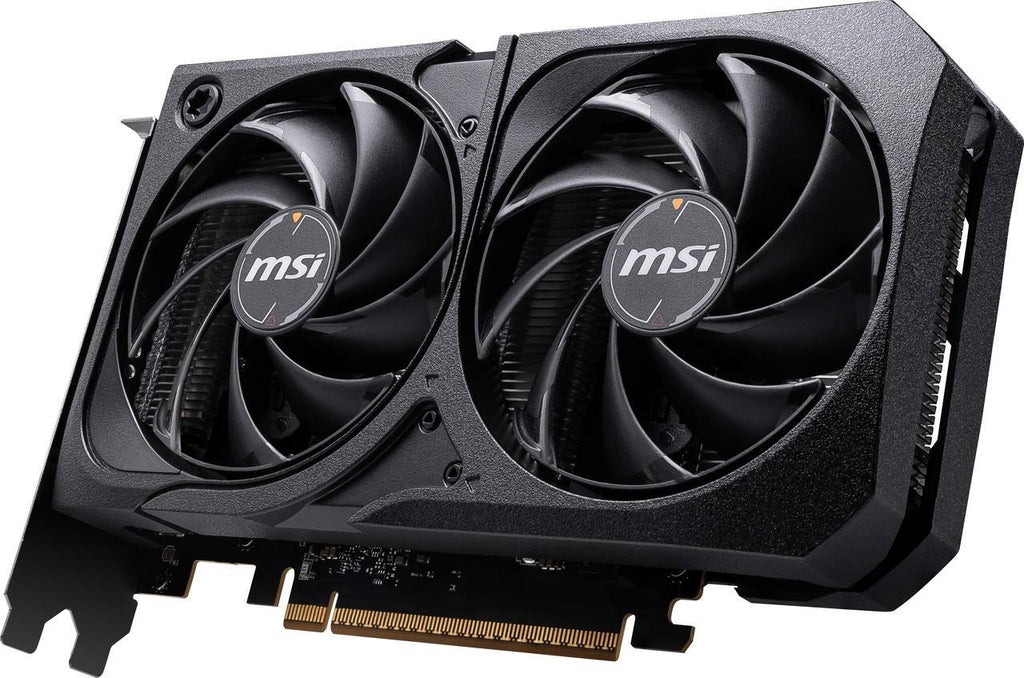

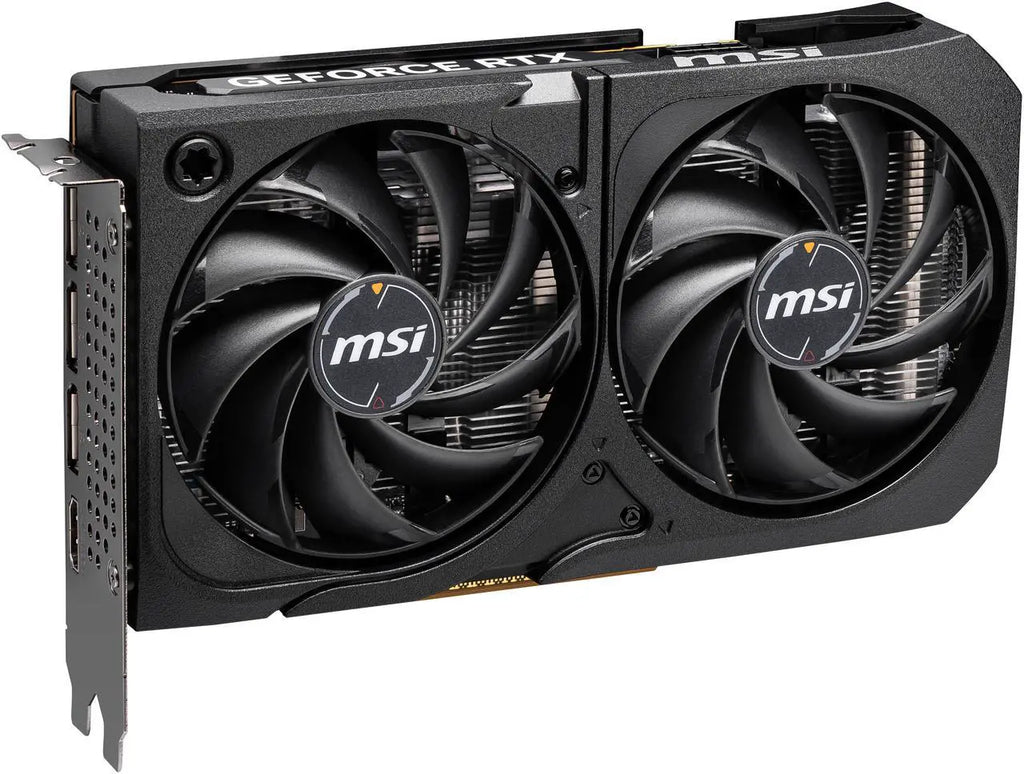

Two fans on a large heatsink ensure great cooling performance with a quieter experience.
TORX FAN 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.

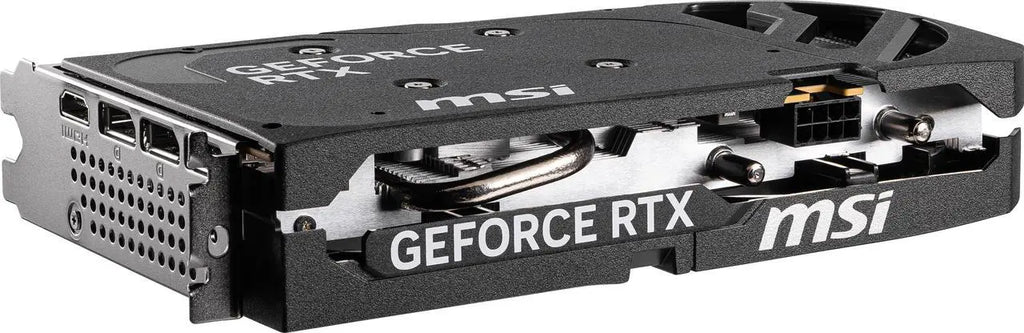

Designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

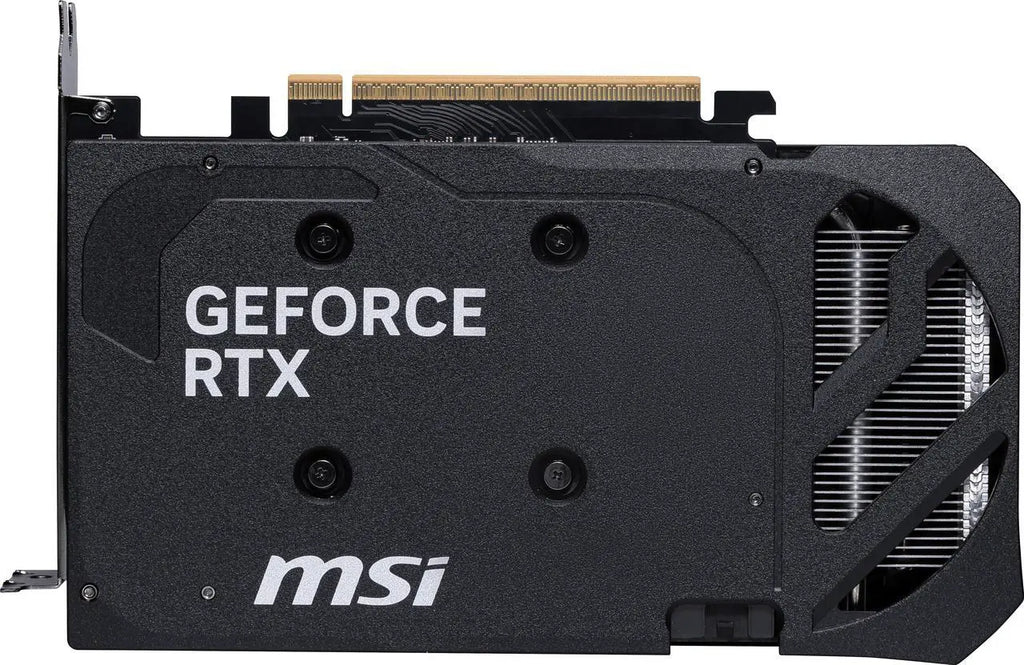

The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
* All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
* All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
High-quality clay-based thermal pads offer additional heat dissipation for critical board components.
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
MSI customers get 1-month of Adobe's top apps.
Game Optimizer dedicates the CPU power needed for optimal performance in your game by isolating non-essential apps to a single CPU core. Boost performance and strengthen your PC’s security at the same time.
Try Game Optimizer and Norton 360 for Gamers for 30 days free.
