| Brand Name |
ZOTAC
|
| GFX Series |
RTX 5060
|
| Vram Memory |
8 GB
|
Specifications
-
GPU
NVIDIA GeForce RTX 5060 GPU
-
CUDA cores
3840
-
Video Memory
8GB GDDR7
-
Memory Bus
128-bit
-
Engine Clock
2497 MHz
-
Memory Clock
28 Gbps
-
AI TOPS
614
-
PCI Express
PCI Express 5.0 x8
-

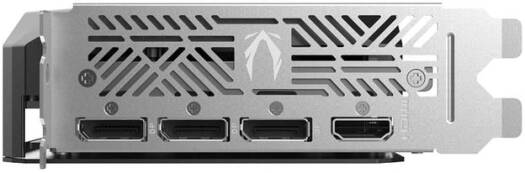

Display Outputs
3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)
-
HDCP Support
2.3
-
Multi Display Capability
Quad Display
-
Recommended Power Supply
550W
-
Power Consumption
145W
-
Power Input
1 x 8-pin power input
-
DirectX
Microsoft DirectX® 12 Ultimate
-
OpenGL
4.6
-
Cooling
Air Cooled
-
Slot Size
2
-
SLI
No
-
Supported OS
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
-
Card Length
220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″
ZOTAC
The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
– Powered by the NVIDIA Blackwell architecture and DLSS 4
– 8-Pin PCIe power connector
– SFF-Ready compact Graphics Card
– Metal Backplate
– BladeLink Fans
– All-new FireStorm Utility (DOWNLOAD)
