Equipped with Realtek 2.5G high-speed wired network card
Equipped with CNVI WiFi/BT slot, supports expansion of WiFi module
Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 2 PCIe 4.0 x4 M.2 SSD slots
Provides 2 5V 3-pin ARGB pins, 1 12V 4-pin RGB pin
Provides HDMI+DP display interface
Supports iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded
Specifications:
| Product image |  |
|---|---|
| Model | BATTLE-AX B760M-K D5 V21A |
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory slots, supporting up to 96 GB memory (single slot supports up to 48 GB capacity) - Supports DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory - Supports Intel® Extreme Memory Profile (XMP) memory technology - Supports dual-channel memory technology (*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |

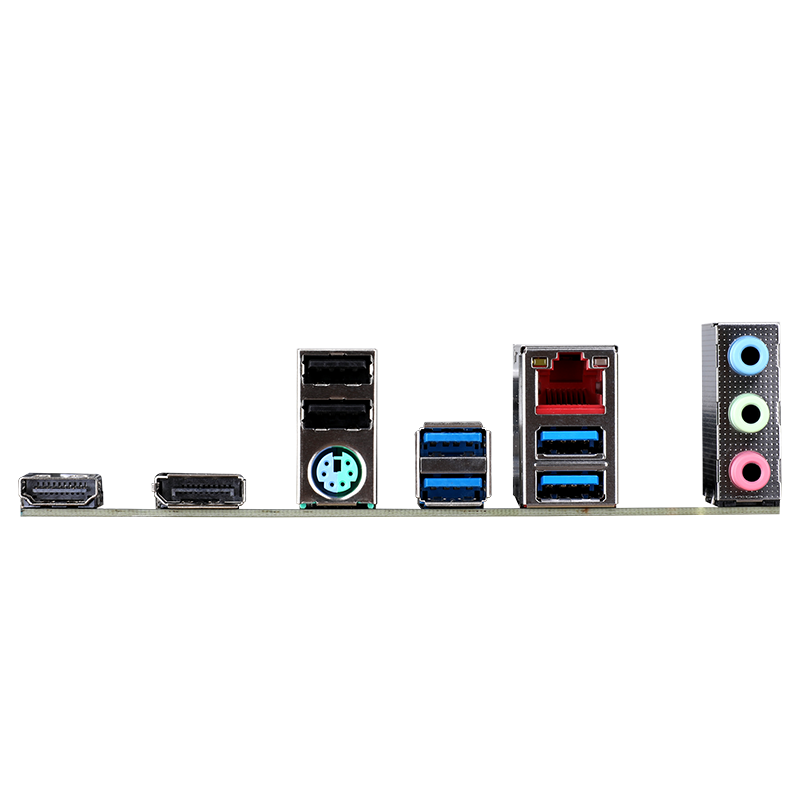

| Board I/O | Rear I/O interface: -2 USB 2.0 interfaces -4 USB 3.2 Gen 1 Type-A interfaces -1 DP 1.2 interface, supports up to 4K 60Hz resolution -1 HDMI 2.0 interface, supports up to 4K 60Hz resolution -1 PS/2 interface -1 2.5G network interface -3 audio interfaces (audio input/audio output/microphone) On board: -1 CPU fan pin -2 system fan pins -1 water cooling pump pin -1 USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1 USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -2 5V 3-pin ARGB pins -1 12V 4-pin RGB pin - 1 front audio pin - 1 front panel pin - 1 speaker pin - 1 serial port pin - 1 clear CMOS jumper - 1 BIOS burner pin |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels |
| Configuration | M-ATX 245mm x 210mm |
