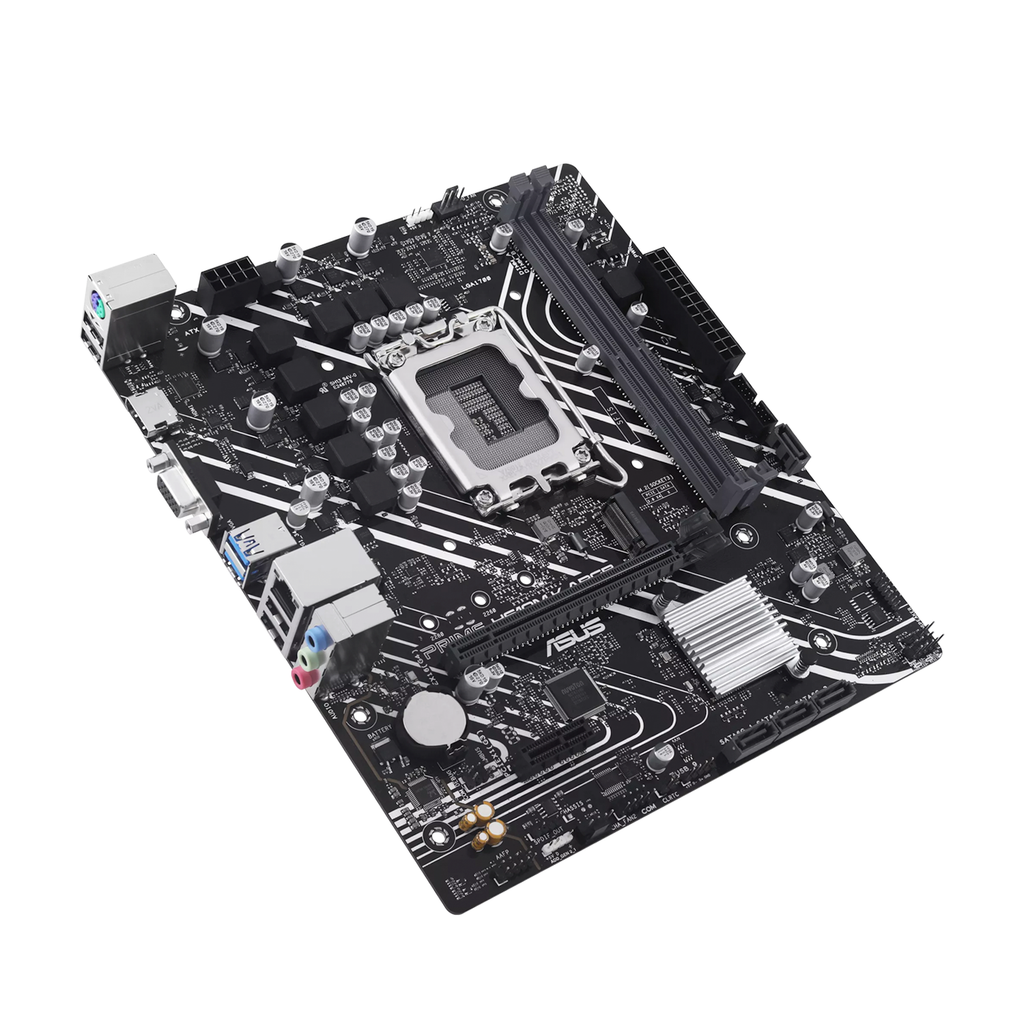

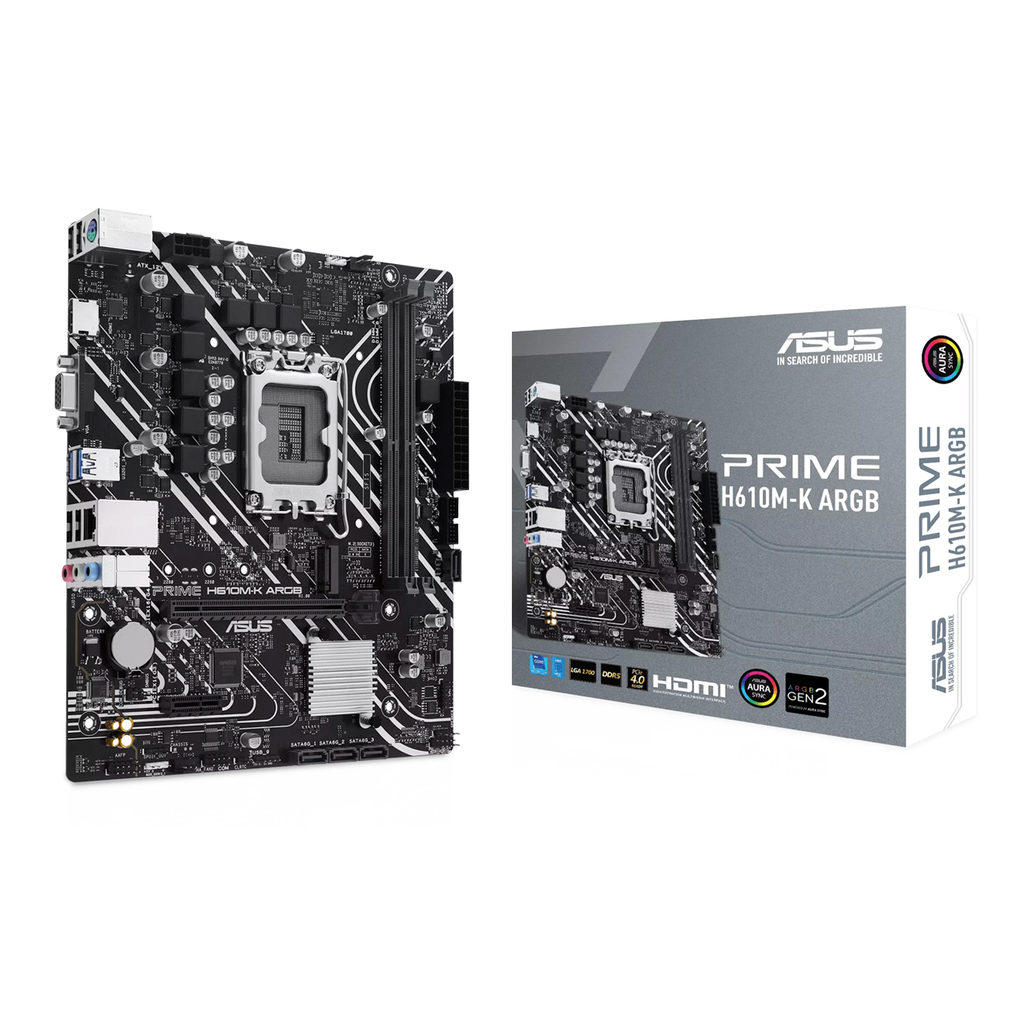

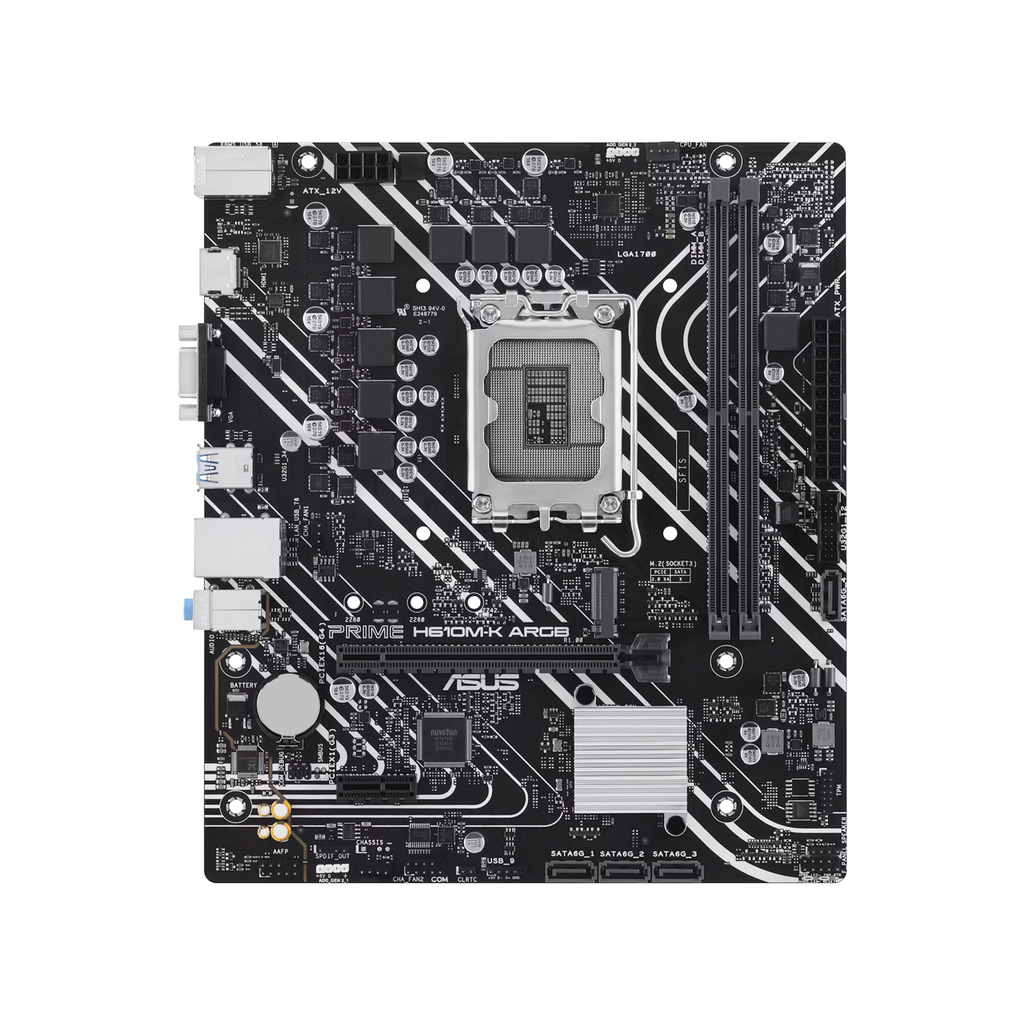

Asus PRIME H610M-K ARGB DDR5 M-ATX Gaming Motherboard / لوحة أم للألعاب Asus PRIME H610M-K ARGB DDR5 M-ATX

Asus PRIME H610M-K ARGB DDR5 M-ATX Gaming Motherboard

PRIME

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th, 13^th & 12^th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

COOLING

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 14^th, 13^th & 12^th Generation Intel processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Memory

DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K ARGB, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K ARGB is primed and ready for enthusiast-grade kits courtesy of Intel Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

Storage

M.2 slot (up to 32 Gbps)

PRIME H610M-K ARGB offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 3 ports)

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x VGA port

1 x HDMI port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

2 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x COM Port header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

DIGI+ VRM

LANGuard

Overvoltage Protection

SafeSlot Core

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-LED Core

Q-Slot

Asus Thermal Solution

Aluminum heatsink design

Aura Sync

Addressable Gen 2 RGB headers

BIOS

128 MB Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

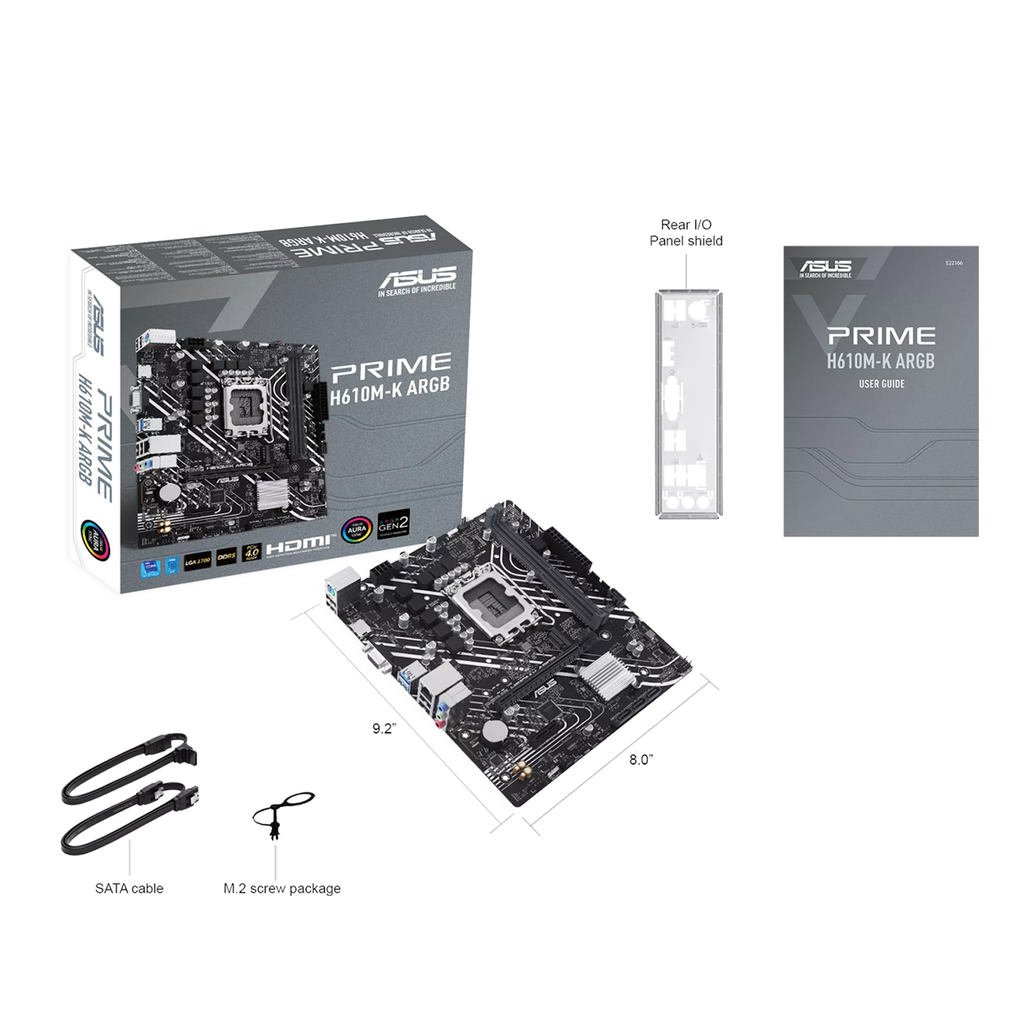

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Anchor

Documentation

1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor

9.2" x 8.0" ( 23.4 cm x 20.3 cm )
